Every MTS tank and kit ships with the installation instructions it needs. Use the sheets below to install your fuel tank, straps, skid plate extensions, and sending unit correctly. Select a sheet to open or print the PDF or diagram.
TAB Sheet
Included with every tank that requires “tabs.” Explains how to correctly install the sending unit using the lock ring, O-ring, and tabs.
Applies to parts like
XL Tank Sheet
Explains how our specially designed skid plate extensions and top strap are installed with an OEM-style CJ skid plate.
Applies to parts like
Jeep® Wagoneer / Cherokee “How-To” Sheet
Explains how our specifically designed 3-piece strap kit mounts our plastic tank. Note that Jeep® mounted these tanks a few different ways, so slight modifications are possible.
Applies to parts like

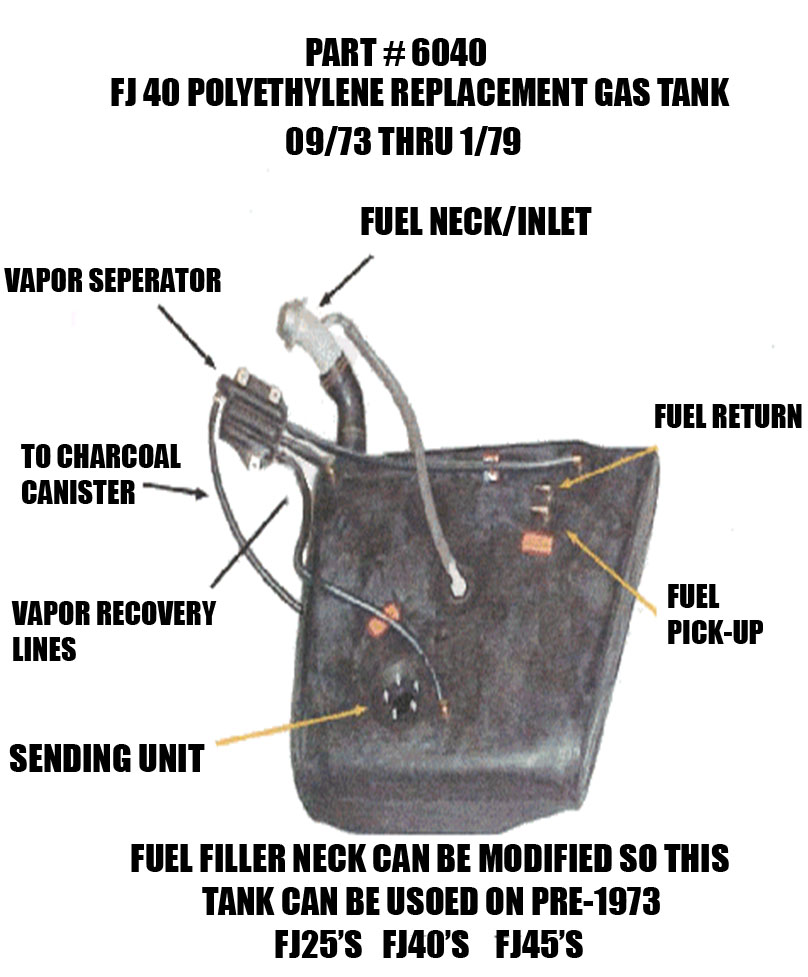

Toyota® Diagram
Our Toyota® “under the seat” tank mounts the same as the original OEM tank. This diagram shows the correct way to attach all components of the fuel system.
Applies to parts like
Int’l Scout® Diagram
Our Scout® 80/800 tanks mount just a little differently than the original OEM tank. This diagram shows the correct way to attach the straps to the vehicle.
Applies to parts like
