Description

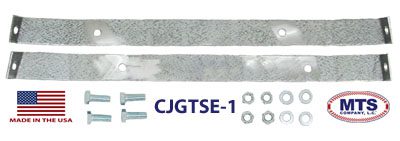

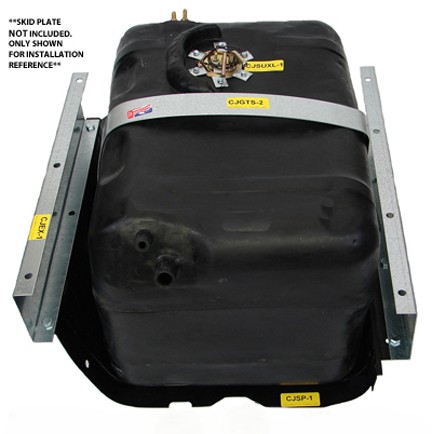

1978-1983 Jeep CJ5, 1978-1986 Jeep CJ7 21-Gal.** fuel tank(oversized 0051). Our 21-Gal. fuel tank requires the 15-Gal. OEM style skid plate and end straps for installation. An in-line fuel filter is required. Includes a new longer top strap, sending unit, skid plate extensions*, lock ring and a new gasket. Approx. dimensions: 23″ x 16″ x 15″. Replaces #: 8128585. UPC #: 810160410256.
Instruction Sheet: XL Tank Sheet

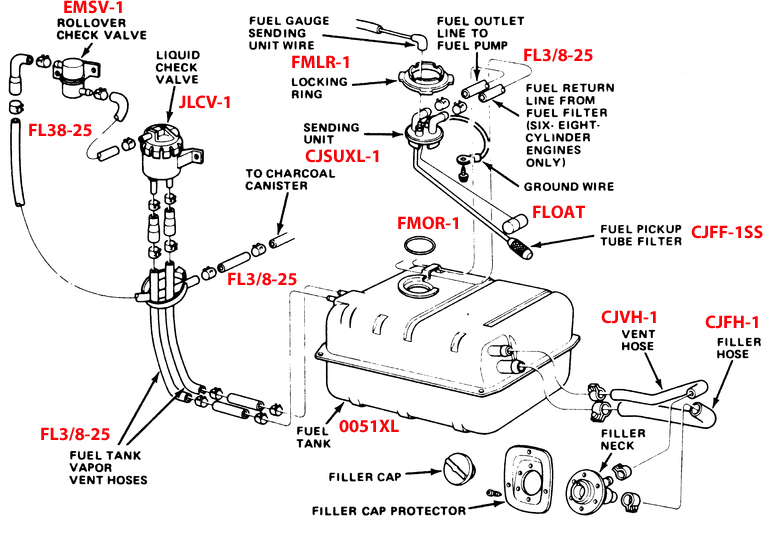

Tank/Fuel System Diagram:
Diagram
*The skid plate extensions are used to lower the skid plate to accomodate the taller fuel tank.

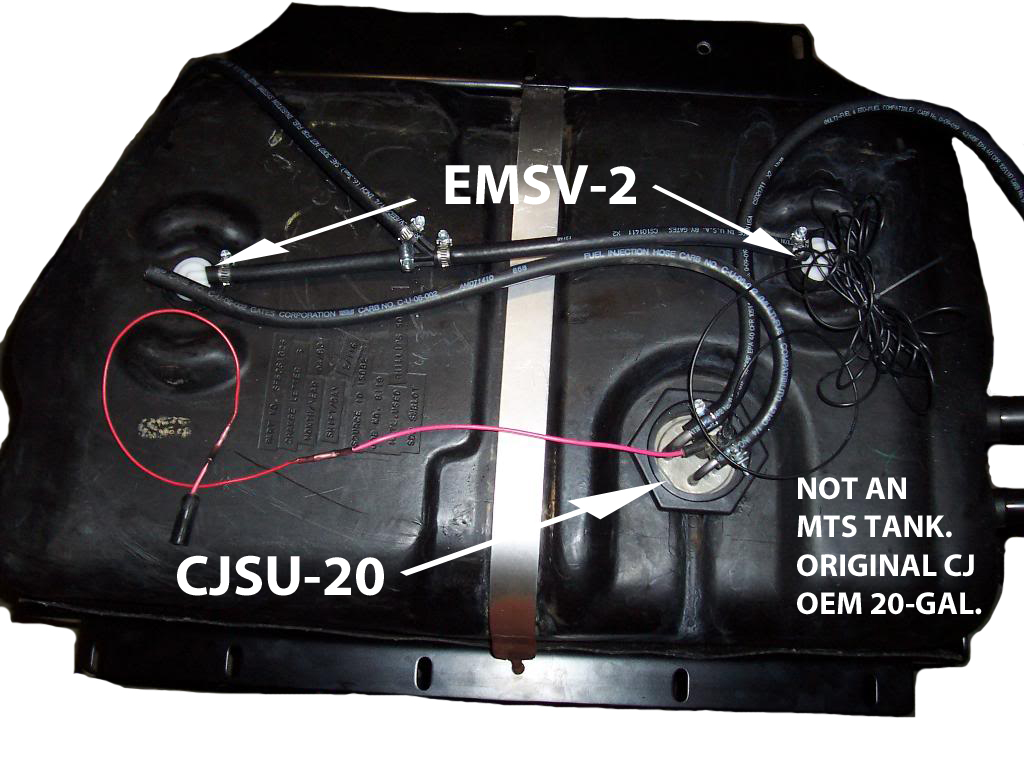

**From 1981-1986, Jeep offered a 20-Gal. OEM “plastic” fuel tank in the CJ’s. Our 21-Gal. plastic fuel tank does not directly replace the OEM 20-Gal. plastic fuel tank. A new 15-Gal. OEM style skid plate, end straps, liquid control valve assembly, fuel filler and vent hoses are required to install our 21-Gal. plastic tank when replacing the OEM 20-Gal. plastic fuel tank.
** This tank will NOT physically fit in a CJ8 Scrambler – too tall.**
