Jeep® CJ Sending Units

Part # Description Related parts
CJSU-1

1972-1986 Jeep® CJ 15 gallon rear fuel tank sending unit. Includes new lock ring, O-ring and in-tank fuel filter(CJFF-1). Replaces # 5357373.
Ohm range: Full 8.5-10.5, Empty 70-80.

Tank # 0050
Tank # 0051
Lock ring # FMLR-1
O-ring # FMOR-1
Fuel filter # CJFF-1

CJSU-2 1945-1964 Jeep® CJ 2A, 3A and early 3B(up to serial #39838) "Under the Seat" fuel tank sending unit. Includes 5-hole gasket. Replaces # 640684.
Ohm range: Full 7-9, Empty 130-140.

Tank #0040ES
Tank #0040ES-RH
Gasket #CJOR-5

CJSU-3 1955-1972 Jeep® late CJ3B(serial #39838 & later), CJ5, CJ6 "Under the Seat" fuel tank sending unit. Includes new 6-hole gasket. Replaces # 914850.
Ohm range: Full 8.5-10.5, Empty 70-80.

Tank #0040LS
Tank #0040LS-RH
Tank #0041
Tank #0041-RH
Gasket #CJOR-6

CJSU-4 1965-1972 Jeep® CJ5, CJ6 lock ring style "Under the Seat" fuel tank sending unit, without the return line. In-line fuel filter recommended. Includes new lock ring and O-ring. Replaces # 948697.
Ohm range: Full 8.5-10.5, Empty 70-80.
Tank #0042
Tank #0042-RH
Lock ring #FMLR-1
O-ring #FMOR-1
CJSU-6 1965-1971 Jeep® CJ5, CJ6 lock ring style "Under the Seat" fuel tank sending unit with V-6, with return line. In-line fuel filter recommended. Includes new lock ring and O-ring. Replaces # 948696.
Ohm range: Full 8.5-10.5, Empty 70-80.
Tank #0042
Tank #0042-RH
Lock ring #FMLR-1
O-ring #FMOR-1
CJSU-20 1981-1986 Jeep® CJ OEM 20 gallon factory "plastic" fuel tank sending unit. Includes new O-ring and in-tank fuel filter(CJFF-1). Replaces # 5362090.
Ohm range: Full 8.5-10.5, Empty 70-80.
EMS Valve # EMSV-1
EMS Valve w/ grommet # EMSV-2
O-ring #FMOR-1
Fuel filter #CJFF-1
CJSUXL-1 1972-1986 Jeep® CJ 21 gallon sending unit for MTS 0050XL and 0051XL fuel tanks only. In-line fuel filter is recommended. Includes new lock ring and O-ring.
Ohm range: Full 8.5-10.5, Empty 70-80.
Tank #0050XL
Tank #0051XL
Lock ring #FMLR-1
O-ring #FMOR-1

Jeep® YJ Sending Units

Part # Description Related parts
YJSU-1 1987-1990 Jeep® Wrangler YJ 15 gallon fuel tank sending unit with fuel injection without pump. Includes new lock ring and O-ring. Replaces # 83502990.
Ohm range: Full 86-90, Empty 0-3.

Tank #0062
Fuel pump #EFPK-3210
Lock ring #GMLR-1
O-ring #GMOR-1

YJSU-1P 1987-1990 Jeep® Wrangler YJ 15 gallon fuel tank sending unit with fuel injection with pump. Includes new lock ring and O-ring.
Ohm range: Full 86-90, Empty 0-3.
Tank #0062
Fuel pump #EFPK-3210
Lock ring #GMLR-1
O-ring #GMOR-1
YJSU-2 1987-1990 Jeep® Wrangler YJ 15 gallon fuel tank sending unit for NON-fuel injection(carbureted) engines. Includes new lock ring and O-ring. Replaces # 83502956.
Ohm range: Full 86-90, Empty 0-3.
Tank #0062
Lock ring #GMLR-1
O-ring #GMOR-1
YJSU-20NFI

1987-1990 Jeep® Wrangler YJ 20 gallon "PLASTIC" fuel tank sending unit for NON-fuel injection(carbureted) engines. Includes new gasket. Replaces # 53003341.
**Orange wire(A) = Dead Wire
**Brown wire(B) = Sending Unit Hot
**Black wire(C) = Ground
Ohm range: Full 86-90, Empty 0-3.

Tank #0065
O-ring #YJOR-20
YJSU-20 1991-1995 Jeep® Wrangler YJ 20 gallon gas tank sending unit with fuel injection without pump. Includes new gasket. Replaces # 5003861.
**Orange wire(A) = Fuel Pump
**Brown wire(B) = Sending Unit Hot
**Black wire(C) = Ground
Ohm range: Full 86-90, Empty 0-3.
Tank #0065
Fuel pump #EFPK-3201C
Gasket #YJOR-20
YJSU-20F

1991-1995 Jeep® Wrangler YJ 20 gallon fuel tank sending unit with fuel injection with pump. Includes new gasket.
**Orange wire(A) = Fuel Pump
**Brown wire(B) = Sending Unit Hot
**Black wire(C) = Ground
Ohm range: Full 86-90, Empty 0-3.

Tank #0065
Fuel pump #EFPK-3201C
Gasket #YJOR-20

Jeep® Comanche & J-truck Sending Units

Part # Description Related parts
JPSU-1 1962-1979 Jeep® Gladiator/J-Truck 18 gallon "Top Mounted" fuel tank sending unit. Includes new lock ring, O-ring and in-tank fuel filter(JPFF-1). Replace # 5357677.
Ohm range: Full 8.5-10.5, Empty 70-80.
Tank #0011
Tank #0012
Tank #0013
Fuel filter #JPFF-1
Lock ring #FMLR-1
O-ring #FMOR-1
JPSU-3 1979-1985 Jeep® J-Truck 18 gallon "Front Mounted" fuel tank sending unit. Includes new O-ring and in-tank fuel filter(CJFF-1). Replaces #'s 5359793 and 5363977.
Ohm range: Full 8.5-10.5, Empty 70-80.
Fuel Filter #CJFF-1
O-ring #FMOR-1
JPSU-4 1986-1987 Jeep® J-truck 18 gallon "Front Mounted" fuel tank sending unit. Includes new O-ring and in-tank fuel filter(CJFF-1). Replaces # 53003201.
Ohm range: Full 80-90, Empty 0-10.
Fuel Filter #CJFF-1
O-ring #FMOR-1
JPSU-5 1986 Jeep® Comanche MJ 18 & 23.5 gallon "Side Mounted" fuel tank sending unit for carbureted (non-fuel injected) and 1986-1987 diesel engines. Includes new lock ring, O-ring and in-tank fuel filter(UVFF-38). Replaces # 52003644, 52003671, 53002490, 52003652, 53002492.
Top Plate View: pic 2
Ohm range: Full 80-90, Empty 0-10.
Fuel Filter #UVFF-38
Lock ring #GMLR-1
O-ring #GMOR-1
JPSU-6

**NEW**

1986-1990 Jeep® Comanche MJ 18 & 23.5 gallon "Side Mounted" fuel tank sending unit with fuel injection (w/out pump) for the 2.5L and 4.0L engines. Includes new lock ring and O-ring. Replaces #
Top Plate View: pic 2
Ohm range: Full 80-90, Empty 0-10.

'86-'90: L4, 2.5 Fuel Pump #EFPK-3210
'91-'92: L4, 2.5 Fuel Pump #EFPK-3204
'87-'92: V6, 4.0 Fuel Pump #EFPK-3204
Lock ring #GMLR-1
O-ring #GMOR-1

JPSU-6P2.5

**NEW**

1986-1990 Jeep® Comanche MJ 18 & 23.5 gallon "Side Mounted" fuel tank sending unit with fuel injection (w/ pump) for the 2.5L engine. Includes new lock ring, O-ring and in-tank filter. Replaces #
Top Plate View: pic 2
Ohm range: Full 80-90, Empty 0-10.

'86-'90: L4, 2.5 Fuel Pump #EFPK-3210
Lock ring #GMLR-1
O-ring #GMOR-1

JPSU-6P4.0

**NEW**

1986-1990 Jeep® Comanche MJ 18 & 23.5 gallon "Side Mounted" fuel tank sending unit with fuel injection (w/ pump) for the 4.0L engine. Includes new lock ring, O-ring and in-tank filter. Replaces #
Top Plate View: pic 2
Ohm range: Full 80-90, Empty 0-10.

'87-'92: V6, 4.0 Fuel Pump #EFPK-3204
Lock ring #GMLR-1
O-ring #GMOR-1

JPSU-7

**NEW**

1991-1992 Jeep® Comanche MJ 18 & 23.5 gallon "Side Mounted" fuel tank sending unit with fuel injection (w/out pump) for the 2.5L & 4.0L engines. Includes new lock ring and O-ring. Replaces #
Top Plate View: pic 2
Ohm range: Full 0-5, Empty 100-110.

'91-'92: L4, 2.5 Fuel Pump #EFPK-3204
'87-'92: V6, 4.0 Fuel Pump #EFPK-3204
Lock ring #GMLR-1
O-ring #GMOR-1

JPSU-7P

**NEW**

1991-1992 Jeep® Comanche MJ 18 & 23.5 gallon "side mounted" fuel tank sending unit with fuel injection with fuel pump. Includes new lock ring, O-ring and in-tank filter. Replaces #
Top Plate View: pic 2
Ohm range: Full 0-5, Empty 100-110.

'91-'92: L4, 2.5 Fuel Pump #EFPK-3204
'87-'92: V6, 4.0 Fuel Pump #EFPK-3204
Lock ring #GMLR-1
O-ring #GMOR-1

Jeep® Wagoneer/Grand Wagoneer/Cherokee Sending Units

Part # Description Related parts
JWPT-1 1970-1979 Jeep® Wagoneer/Cherokee 21 gallon fuel pick-up tube assembly. Includes new lock ring, O-ring and in-tank fuel filter(UVFF-3). Replaces # 5357843. Tank #0020
Tank #0022
Fuel filter #UVFF-3
Lock ring #FMLR-1
O-ring #FMOR-1
JWSU-1 1970-1979 Jeep® Wagoneer/Cherokee 21 gallon fuel tank sending unit. Includes new lock ring and O-ring. Replaces # 5361468.
Ohm range: Full 8.5-10.5, Empty 70-80.
Tank #0020
Tank #0022
Lock ring #JWLR-1
O-ring #GMOR-2
JWSU-3 1986-1991 Jeep® Grand Wagoneer fuel tank sending unit. Includes new O-ring and in-tank fuel filter(CJFF-1). Replaces #'s 53006586 and 53003099.
Ohm range: Full 100-110, Empty 0-5.
Fuel filter #CJFF-1
O-ring #FMOR-1
JWSU-4

1980-1983 Jeep® Cherokee/ Wagoneer SJ fuel tank sending unit for Carbureted (non-fuel injected) engines.

1984-1985 Jeep® Grand Wagoneer fuel tank sending unit for Carbureted (non-fuel injected) engines on the SJ frame.

Includes new O-ring and in-tank fuel filter(CJFF-1). Replaces # J5363490.

*This sending unit will not fit the 1984-2001 Jeep Cherokee XJ series. See JWSU-5 for 1984-1986/7 carberated/diesel engine sending unit.*

Ohm range: Full 8.5-10.5, Empty 70-80.

O-ring #FMOR-1
Fuel filter #CJFF-1
JWSU-5

1984-1985 Jeep® Cherokee/Wagoneer XJ 13.5 & 20.2 gallon "Side Mounted" fuel tank sending unit for 2.5L, 4 cylinder Carbureted (non-fuel injected) engine.

1984-1986 Jeep® Cherokee/Wagoneer XJ 13.5 & 20.2 gallon "side mounted" fuel tank sending unit for 2.8L,V6 Carbureted (non-fuel injected) engine.

1984-1987 Jeep® Cherokee/Wagoneer XJ 13.5 & 20.2 gallon "side mounted" fuel tank sending unit for 2.1L "DIESEL" engine.

Includes new lock ring, O-ring and in-tank fuel filter (TREXUVFF-38). Replaces # 52003062, 52003647.

**Jeep introduced their 2.5L, 4 cylinder throttle body/fuel injection engine in their 1986 Cherokee/Wagoneer XJ models. This unit will NOT work with the throttle body/fuel injected engine.

Top Plate View: pic 2
Ohm range: Full 100-110, Empty 0-5.

Fuel Filter #UVFF-38
Lock ring #GMLR-1
O-ring #GMOR-1
JCSU-8790 1987-1990 Jeep® Cherokee fuel tank sending unit with fuel injected (w/out pump) for the 2.5L and 4.0L engines. Includes new lock ring and O-ring. Replaces # 4637192.
Ohm range: Full 80-90, Empty 0-10.

L4, 2.5 Fuel Pump #EFPK-3210
V6, 4.0 Fuel Pump #EFPK-3204
Lock ring #GMLR-1
O-ring #GMOR-1

JCSU-8790P2.5 1987-1990 Jeep® Cherokee fuel tank sending unit with fuel injected (w/ pump) for the 2.5L engine. Includes new lock ring, O-ring and in-tank fuel filter.
Ohm range: Full 80-90, Empty 0-10.

L4, 2.5 Fuel Pump #EFPK-3210
Lock ring #GMLR-1
O-ring #GMOR-1

JCSU-8790P4.0 1987-1990 Jeep® Cherokee fuel tank sending unit with fuel injected (w/ pump) for the 4.0L engine. Includes new lock ring, O-ring and in-tank fuel filter.
Ohm range: Full 80-90, Empty 0-10.

V6, 4.0 Fuel Pump #EFPK-3204
Lock ring #GMLR-1
O-ring #GMOR-1

JCSU-9193 1991-1993 Jeep® Cherokee fuel tank sending unit with fuel injection (w/o pump) for the 2.5L and 4.0L engines. Includes new lock ring and O-ring. Replaces # 4637003.
Ohm range: Full 0-5, Empty 100-110.

L4-2.5 & V6-4.0
Fuel Pump #EFPK-3204
Lock ring #GMLR-1
O-ring #GMOR-1

JCSU-9193P

1991-1993 Jeep® Cherokeefuel tank sending unit with fuel injection (w/ pump) for the 2.5L and 4.0L engines. Includes new lock ring, O-ring and in-tank fuel filter.
Ohm range: Full 0-5, Empty 100-110

L4-2.5 & V6-4.0
Fuel Pump #EFPK-3204
Lock ring #GMLR-1
O-ring #GMOR-1

Willys®/Jeep® Forward Control Truck

Part # Description Related parts
JFSU-150 1955-1965 Willys®/Jeep® FC-150 truck fuel tank sending unit for bedside tank with 81" wheelbase. Includes new 6-hole gasket. Replaces# 914852.
Ohm range: Full 5-10, Empty 90-100.
Gasket #CJOR-6
JFSU-170 1957-1965 Willys®/Jeep® FC-170 truck fuel tank sending unit for rear tank with 103" wheelbase. Includes new 6-hole gasket. Replaces # 912760.
Ohm range: Full 5-10, Empty 90-100.
Gasket #CJOR-6

Willys® Pickup & Steel Wagon/Jeepster® Commando Sending Units

Part # Description Related parts
JPSU-2 1947-1963 Willys® Pickup 14 gallon fuel tank sending unit. Includes new 6-hole gasket. Replaces # 914849.
Ohm range: Full 8.5-10.5, Empty 70-80.
Tank #0010
Gasket #CJOR-6
JWSU-2 1946-1963 Willys® Steel Body Wagon and 1948-1951 Willys® Jeepster 15 gallon fuel tank sending unit. Includes new 6-hole gasket. Replaces # 914848.
Ohm range: Full 8.5-10.5, Empty 70-80.
Tank #0018
Gasket #CJOR-6
JCSU-C101

1967-1971 Jeepster® Commando C-101 12 and 14 gallon fuel tank sending unit without return line*. Includes new 6-hole gasket. Replaces #
Ohm range: Full 0-5, Empty 70-80.

Tank #0010C
Tank #0010SF
Gasket #CJOR-6
JCSU-C101WR 1967-1971 Jeepster® Commando C-101 12 and 14 gallon fuel tank sending unit with return line*. Includes new 6-hole gasket. Replaces # 944890.
Ohm range: Full 0-5, Empty 70-80.
Tank #0010C
Tank #0010SF
Gasket #CJOR-6

Jeep® Military Sending Unit

Part # Description Related parts
JMSU-MB/GPW 1941-1945 Jeep® Army/Military fuel tank sending unit. Includes new 5-hole gasket. Replaces # A-1292.
Ohm range: Full 5-10, Empty 135-140.
Gasket #CJOR-5

Toyota® Sending Units

Part # Description Related parts
TLSU-1 9/1973-12/1978 Toyota® Landcruiser FJ-40, FJ45 and BJ fuel tank sending unit. Includes new 5- hole gasket. Replaces # 8332060050.
Ohm range: Full 10-17, Empty 135-145.
Tank #6040
Gasket #TLOR-1

International Harvester® Pickup, Travelall & Scout Sending Units

Part # Description Related parts
IHSU-1

1961-1968 International Harvester® Travelall, Travelette, C-Series Pickup Left and right 15 Gal. fuel tank** sending unit. Includes new lock ring and O-ring. Replaces # 232282R91, 167079R1.

**IH had three different fuel tanks for these vehicles, this unit fits the 15 gal. tank**

Ohm range: Full 8-10, Empty 70-80.

Lock Ring #JWLR-1
O-Ring #GMOR-2
IHSU-2 1950-1957 International Harvester® L, R and S-Series Pickup fuel tank sending unit. Includes new 6-hole gasket.
Ohm range: Full 8-10, Empty 70-80.

Gasket #CJOR-6
IHSU-3 1969-1975 International Harvester® Travelall, Travelette and D-Series Pickup gas tank sending unit. Includes new lock ring, O-Ring and in-tank fuel filter. Replaces # 356943-C2.
Ohm range: Full 8-10, Empty 70-80.

Tank #3120SE
Tank #3120SL
Tank #3120RE
Tank #3120RL
Tank #3120LE
Tank #3120LL
Lock ring #FMLR-1
O-ring #FMOR-1

SCSU-1B 1961-1971 International Scout® 80/800 12 gallon left or right side fuel tank sending unit. Includes new 6-hole gasket. After serial #FC35340. Replaces # 860097R91.
Ohm range: Full 10, Empty 73.
Tank #3012L
Tank #3012R
Gasket #CJOR-6
SCSU-2 1972-1980 International Scout® II 19 gallon fuel tank sending unit. Includes new lock ring, O-ring and in-tank fuel filter. Replaces # 402522C2.
Ohm range: Full 8-10, Empty 70-80.

Tank #3019E
Tank #3019L
Lock ring #FMLR-1
O-ring #FMOR-1

Ford® E-Series Diesel Fuel Sending Units

Part # Description Related parts
FMSU-21DE
**NEW**

1986-1991 Ford® E-Series 18 gallon DIESEL ONLY (front) fuel tank sending unit. Does NOT include a filter, but it does include a new lock ring and O-ring. Replaces # E6UZ-9275-C.
Top Plate View: pic 2
Ohm range: Full 8.5-10.5, Empty 63-85.
Lock ring #FMLR-2
O-ring #FMOR-2
Fuel filter # FMFF-1
FMSU-6DE 1988-1991 Ford® E-Series 19 gallon DIESEL ONLY (front) fuel tank sending unit. Does NOT include a filter, but it does include a new lock ring and O-ring.
Top Plate View: pic 2
Ohm range: Full 8.5-10.5, Empty 63-85.

Tank #4252A
Lock ring #FMLR-2
O-ring #FMOR-2
Fuel filter # FMFF-1

FMSU-21DER
**NEW**

1986-1991 Ford® Full-Size Pickup 22 gallon DIESEL ONLY (rear/aft axle) fuel tank sending unit. Includes a new lock ring and O-ring but does NOT include the in-tank fuel filter. Replaces # E6UZ-9275-F and E8UF-9275-BA.
Top Plate View: pic 2
Ohm range: Full 8.5-10.5, Empty 63-85.
Lock ring #FMLR-2
O-ring #FMOR-2
Fuel filter # FMFF-1

Ford® F-Series Diesel Fuel Sending Units

Part # Description Related parts
FMSU-4DE
**NEW**

1983-1984 Ford® Full-Size Pickup 19 gallon DIESEL ONLY (front, side, midship) fuel tank sending unit. Does NOT include a filter, but it does include a new lock ring and O-ring.
Top Plate View: pic 2
Ohm range: Full 8.5-10.5, Empty 63-85.
Tank #4252B
Lock ring #FMLR-1
O-ring #FMOR-1
Fuel filter # FMFF-5
FMSU-4DER
**NEW**

1983-1984 Ford® Full-Size Pickup 19 gallon DIESEL ONLY (rear/aft axle) fuel tank sending unit. Includes a new lock ring and O-ring but does NOT include the in-tank fuel filter.
Top Plate View: pic 2
Ohm range: Full 8.5-10.5, Empty 63-85.
Tank #4252
Lock ring #FMLR-1
O-ring #FMOR-1
Fuel filter # FMFF-5
FMSU-6DE 1985-1986 Ford® Full-Size Pickup 19 gallon DIESEL ONLY (front, side, midship) fuel tank sending unit. Does NOT include a filter, but it does include a new lock ring and O-ring.
Top Plate View: pic 2
Ohm range: Full 8.5-10.5, Empty 63-85.
Tank #4252A
Lock ring #FMLR-2
O-ring #FMOR-2
Fuel filter # FMFF-1
FMSU-6DER 1985-1986 Ford® Full-Size Pickup 19 gallon DIESEL ONLY (rear/aft axle) fuel tank sending unit. Includes a new lock ring and O-ring but does NOT include the in-tank fuel filter.
Top Plate View: pic 2
Ohm range: Full 8.5-10.5, Empty 63-85.
Tank #4253
Lock ring #FMLR-2
O-ring #FMOR-2
Fuel filter # FMFF-1
FMSU-5DE 1987-1989 Ford® Full-Size Pickup 19 gallon DIESEL ONLY (front, side, midship) fuel tank sending unit. Does NOT include a filter, but it does include a new lock ring and O-ring.
Top Plate View: pic 2
Ohm range: Full 155-165, Empty 5-16.
Tank #4252A
Lock ring #FMLR-2
O-ring #FMOR-2
Fuel filter # FMFF-1
FMSU-5DER 1987-1989 Ford® Full-Size Pickup 19 gallon DIESEL ONLY (rear/aft axle) fuel tank sending unit. Includes a new lock ring and O-ring but does NOT include the in-tank fuel filter.
Top Plate View: pic 2
Ohm range: Full 155-165, Empty 5-16.
Tank #4253
Lock ring #FMLR-2
O-ring #FMOR-2
Fuel filter # FMFF-1
FMSU-7DE
1990-1991 Ford® Full-Size Pickup 19 gallon DIESEL ONLY (front, side, midship) fuel tank sending unit. Does NOT include a filter, but it does include a new lock ring and O-ring.
Top Plate View: pic 2
Ohm range: Full 155-165, Empty 5-16.
Tank #4252A
Lock ring #FMLR-2
O-ring #FMOR-2
Fuel filter # FMFF-1
FMSU-7DER
1990-1991 Ford® Full-Size Pickup 19 gallon DIESEL ONLY (rear/aft axle) fuel tank sending unit. Does NOT include a filter, but it does include a new lock ring and O-ring.
Top Plate View: pic 2
Ohm range: Full 155-165, Empty 5-16.
Tank #4253
Lock ring #FMLR-2
O-ring #FMOR-2
Fuel filter # FMFF-1
FMSU-8DE
1992-1993 Ford® Full-Size Pickup 19 gallon DIESEL ONLY (front, side, midship) fuel tank sending unit. Does NOT include a filter, but it does include a new lock ring and O-ring.
Top Plate View: pic 2
Ohm range: Full 155-165, Empty 5-16.
Tank #4252A
Lock ring #FMLR-2
O-ring #FMOR-2
Fuel filter # FMFF-1
FMSU-8DER
1992-1993 Ford® Full-Size Pickup 19 gallon DIESEL ONLY (rear/aft axle) fuel tank sending unit. Does NOT include a filter, but it does include a new lock ring and O-ring.
Top Plate View: pic 2
Ohm range: Full 155-165, Empty 5-16.
Tank #4253
Lock ring #FMLR-2
O-ring #FMOR-2
Fuel filter # FMFF-1
FMSU-9DE

1994-1997 Ford® Full-Size Pickup 19 gallon DIESEL ONLY (front, side, midship) fuel tank sending unit. Does NOT include a filter, but it does include a new lock ring and O-ring.

**Yellow wire = Sending Unit Hot
**Gray wire = Sending Unit Ground
**Pink/Black wire = Dead
**Black wire = Dead

Top Plate View: pic 2
Ohm range: Full 155-165, Empty 5-16.

Tank #4252A
Lock ring #FMLR-2
O-ring #FMOR-2
Fuel filter # FMFF-1
FMSU-9DER

1994-1997 Ford® Full-Size Pickup 19 gallon DIESEL ONLY (rear/aft axle)fuel tank sending unit. Does NOT include a filter, but it does include a new lock ring and O-ring.

**Yellow wire = Sending Unit Hot
**Gray wire = Sending Unit Ground
**Pink/Black wire = Dead
**Black wire = Dead

Top Plate View: pic 2
Ohm range: Full 155-165, Empty 5-65.

Tank #4253
Lock ring #FMLR-2
O-ring #FMOR-2
Fuel filter # FMFF-1
FMSU-9DES
**NEW**

1994-1997 Ford® Full-Size Pickup 17 gallon DIESEL ONLY (front, side, midship)fuel tank sending unit. Does NOT include a filter, but it does include a new lock ring and O-ring.

**Yellow wire = Sending Unit Hot
**Gray wire = Sending Unit Ground
**Pink/Black wire = Dead
**Black wire = Dead

Top Plate View: pic 2
Ohm range: Full 155-165, Empty 5-16.

Tank #4216A
Lock ring #FMLR-2
O-ring #FMOR-2
Fuel filter # FMFF-1
FMSU-10DEP
**NEW**
1985-1986 Ford® Full-Size Pickup **OEM REAR PLASTIC** DIESEL ONLY fuel tank sending unit. This sending unit is secured to the tank with a lock nut specific to the OEM plastic tank. Does NOT include a filter, but it does include a new O-ring.
Top Plate View: pic 2
Ohm range: Full 8.5-10.5, Empty 63-85.
O-ring #FMOR-1
Fuel filter # FMFF-5
FMSU-11DEP
1990-1991 Ford® Full-Size Pickup **OEM REAR PLASTIC** DIESEL ONLY fuel tank sending unit. This sending unit is secured to the tank with a lock nut specific to the OEM plastic tank. Does NOT include a filter, but it does include a new O-ring.
Top Plate View: pic 2
Ohm range: Full 155-165, Empty 5-16.
O-ring #FMOR-2
Fuel filter # FMFF-1
FMSU-11DEPS
**NEW**
1990-1991 Ford® Full-Size Pickup **OEM FRONT/SIDE/MIDSHIP PLASTIC** DIESEL ONLY fuel tank sending unit. This sending unit is secured to the tank with a lock nut specific to the OEM plastic tank. Does NOT include a filter, but it does include a new O-ring.
Top Plate View: pic 2
Ohm range: Full 155-165, Empty 5-16.
O-ring #FMOR-2
Fuel filter # FMFF-1
FMSU-12DEP
**NEW**
1987-1989 Ford® Full-Size Pickup **OEM REAR PLASTIC** DIESEL ONLY fuel tank sending unit. This sending unit is secured to the tank with a lock nut specific to the OEM plastic tank. Does NOT include a filter, but it does include a new O-ring.
Top Plate View: pic 2
Ohm range: Full 155-165, Empty 5-16.
O-ring #FMOR-1
Fuel filter # FMFF-5
FMSU-13DEP
**NEW**
1992-1993 Ford® F-250/F-350 Pickup **OEM REAR PLASTIC** DIESEL ONLY fuel tank sending unit. This sending unit is secured to the tank with a lock nut specific to the OEM plastic tank. Does NOT include a filter, but it does include a new O-ring.
Top Plate View: pic 2
Ohm range: Full 155-165, Empty 5-16.
O-ring #FMOR-2
Fuel filter # FMFF-1
FMSU-13DEPS
**NEW**
1992-1993 Ford® Full-Size Pickup **OEM FRONT/SIDE/MIDSHIP PLASTIC** DIESEL ONLY fuel tank sending unit. This sending unit is secured to the tank with a lock nut specific to the OEM plastic tank. Does NOT include a filter, but it does include a new O-ring.
Top Plate View: pic 2
Ohm range: Full 155-165, Empty 5-16.
O-ring #FMOR-2
Fuel filter # FMFF-1
FMSU-14DEP
1994-1997 Ford® F-250/F-350 Pickup **OEM REAR PLASTIC** DIESEL ONLY fuel tank sending unit. This sending unit is secured to the tank with a lock nut specific to the OEM plastic tank. Does NOT include a filter, but it does include a new O-ring.
Top Plate View: pic 2
Ohm range: Full 155-165, Empty 5-16.
O-ring #FMOR-2
Fuel filter # FMFF-1
FMSU-14DEPS
1994-1997 Ford® F-250/F-350 Pickup **OEM FRONT/SIDE/MIDSHIP PLASTIC** DIESEL ONLY fuel tank sending unit. This sending unit is secured to the tank with a lock nut specific to the OEM plastic tank. Does NOT include a filter, but it does include a new O-ring.
Top Plate View: pic 2
Ohm range: Full 155-165, Empty 5-16.
O-ring #FMOR-2
Fuel filter # FMFF-1
FMSU-40A 2003-2007 Ford® F-250 & F-350 Super Duty Lariat, V8 6.0L, VIN#: P
2003-2007 Ford® F-250 & F-350 Super Duty XL, V8 6.0L, VIN#: P
2003-2007 Ford® F-250 & F-350 Super Duty XLT, V8 6.0L, VIN#: P
2004-2007 Ford® F-250 & F-350 Super Duty Harley-Davidson Edition, V8 6.0L, VIN#: P
2004-2007 Ford® F-250 & F-350 Super Duty King Ranch, V8 6.0L, VIN#: P
2005 Ford® F-250 Super Duty FX4, V8 6.0L, VIN#: P
2006 Ford® F-350 Super Duty Amarillo, V8 6.0L, VIN#: P

This is a 40 gallon DIESEL ONLY (rear/aft axle) fuel tank sending unit and is installed with 6 bolts, not a lock ring. Includes new O-ring specific to your tank, it does not include the in-tank "funnel" filter. This is a 3 pipe sending unit utilizing the same quick connect design as OEM - pipe I.D. measurements: Fuel pickup - 3/8", fuel return - 5/16" and - 1/8" diameter.

When ordering the sending unit, please specify if you have the original metal tank or our 4740A plastic tank.

Top Plate & Plug(2 pin) View: pic 2
Ohm range: Full 0-10, Empty 175-185.
Tank #4740A
MTS O-ring #
4740A-OR

Steel Tank O-ring #
OEM Gasket
Fuel filter # FMFF-2

Ford® Full-Size Pickup Gas Sending Units

Part # Description Related parts
FMSU-2 1973-1984 Ford® Full-Size Pickup 19 gallon rear mounted fuel tank sending unit. Includes new lock ring, O-ring and in-tank fuel filter.
Ohm range: Full 8.5-10.5, Empty 70-80.
Tank #4250
Tank #4250A
Tank #4252
Lock ring #FMLR-1
O-ring #FMOR-1

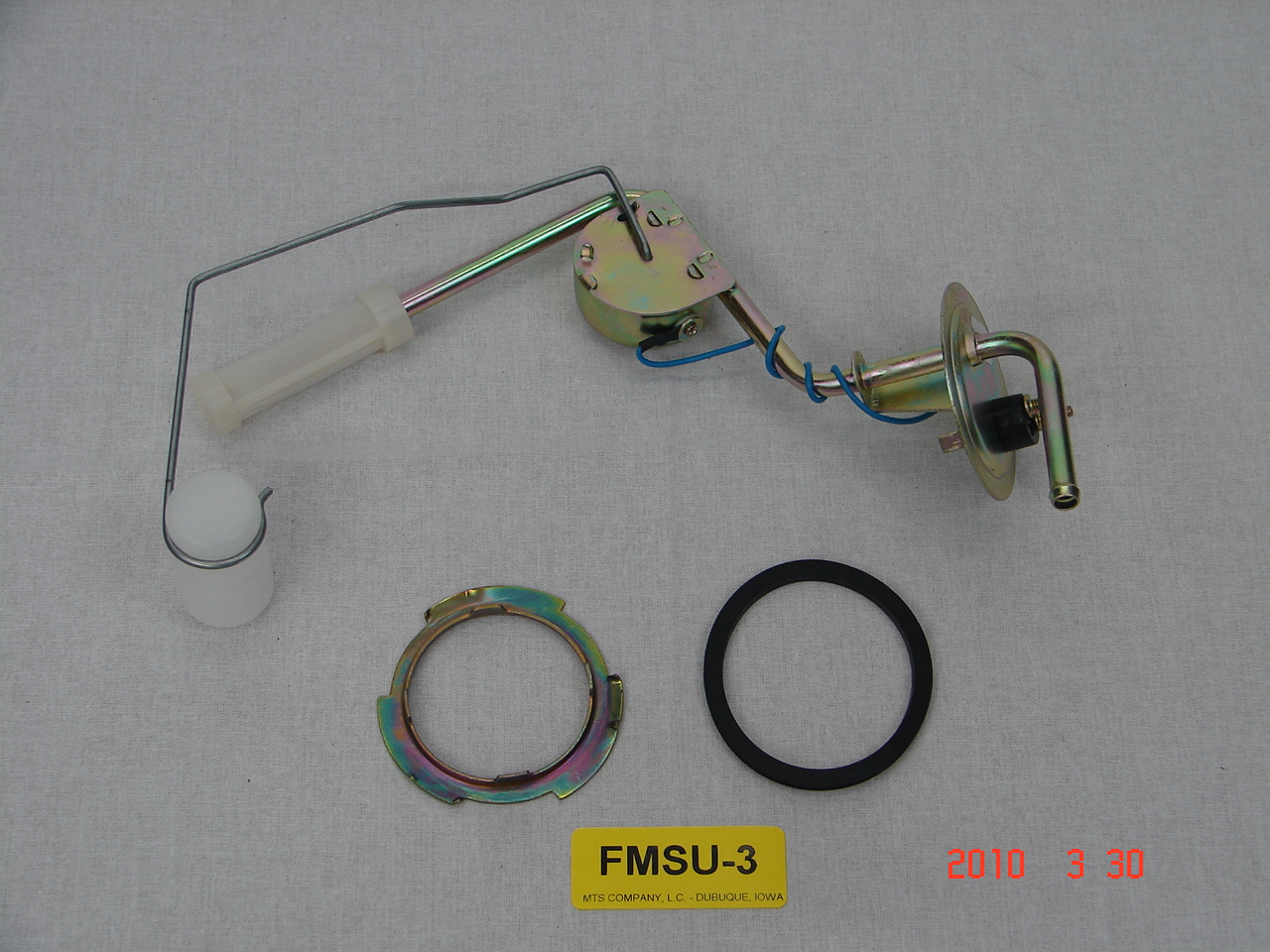

FMSU-3 1980-1984 Ford® Full-Size Pickup 19 gallon fuel (front, side, midship)tank sending unit. Includes new lock ring, O-ring and in-tank fuel filter. Replaces # E0TZ-9275-G.
Ohm range: Full 8.5-10.5, Empty 70-80.
Tank #4252B
Lock ring #FMLR-1
O-ring #FMOR-1

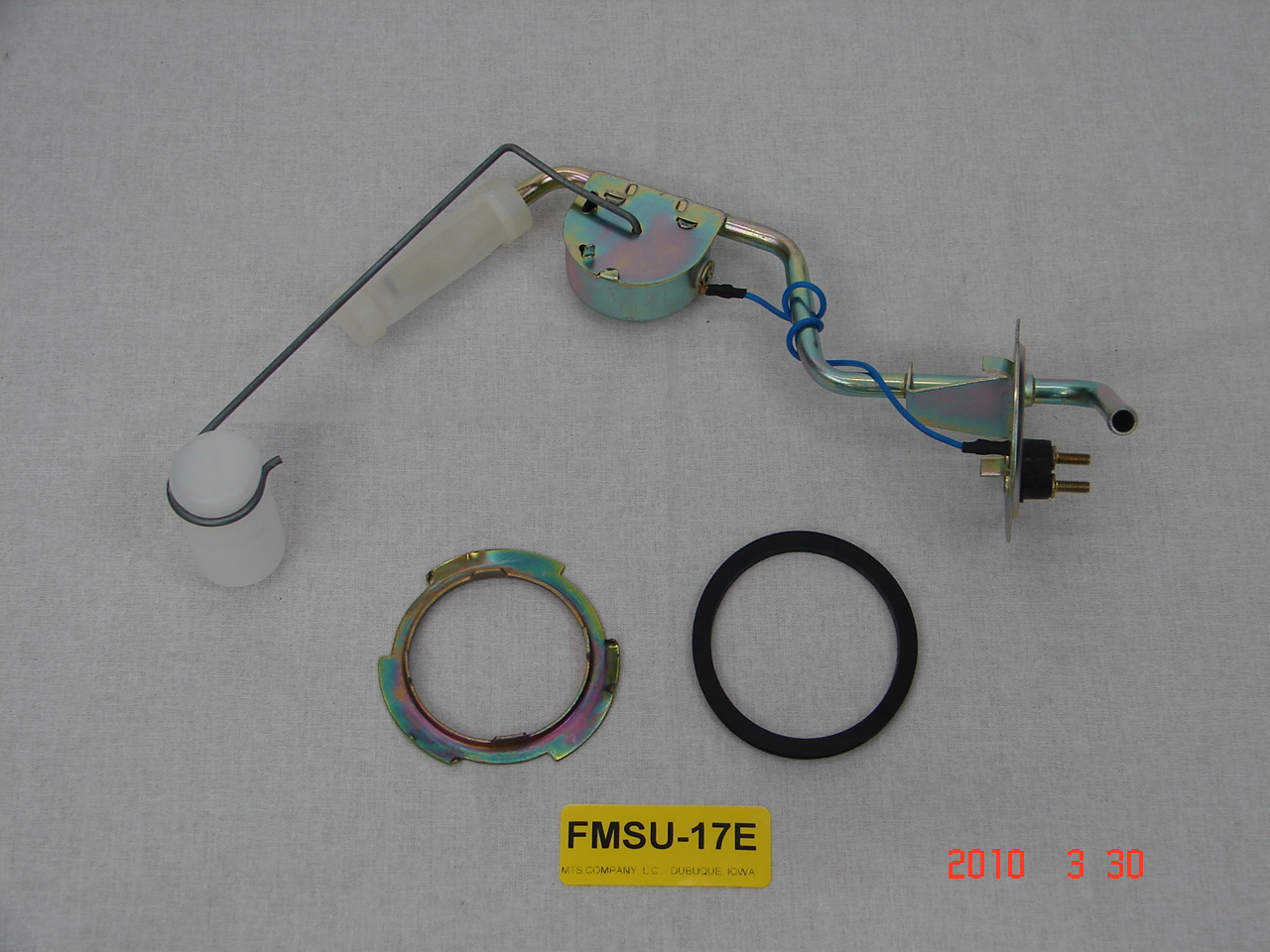

FMSU-17E 1980-1984 Ford® Full-Size Pickup 17 gallon gas(front, side, midship)tank sending unit without fuel injection. Includes new lock ring, O-ring and in-tank fuel filter. Replaces # E0TZ-9275-F.
Ohm range: Full 8.5-10.5, Empty 70-80.
Tank #4216B
Lock ring #FMLR-1
O-ring #FMOR-1
FMSU-4B 1987-1989 Ford® Full-Size Pickup 19 gallon rear gas tank (not diesel) sending unit with fuel injection without pump. Includes new lock ring and O-ring. Replaces #'s E5TZ-94307-B, E5TZ9H307BA.
Ohm range: Full 155-165, Empty 5-15.
Tank #4253
Lock ring # FMLR-2
O-ring # FMOR-2
Fuel pump #EFPK-3206
Fuel pump #EFPK-3266
FMSU-4BP 1987-1989 Ford® Full-Size Pickup 19 gallon rear gas tank (not diesel) sending unit with fuel injection with pump. Includes new lock ring, O-ring and in-tank fuel filter.
Ohm range: Full 155-165, Empty 5-15.
Tank #4253
Lock ring #FMLR-2
O-ring #FMOR-2
Fuel pump #EFPK-3206
Fuel pump #EFPK-3266
FMSU-5 1990-1991 Ford® Full-Size Pickup 19 gallon gas(front, side, midship)tank sending unit without fuel module or float arm. Includes new lock ring and O-ring. Replaces # F4TZ-9A407-D. Tank #4252A
Lock ring #FMLR-2
O-ring #FMOR-2
In-tank fuel pump #EFPK-3281

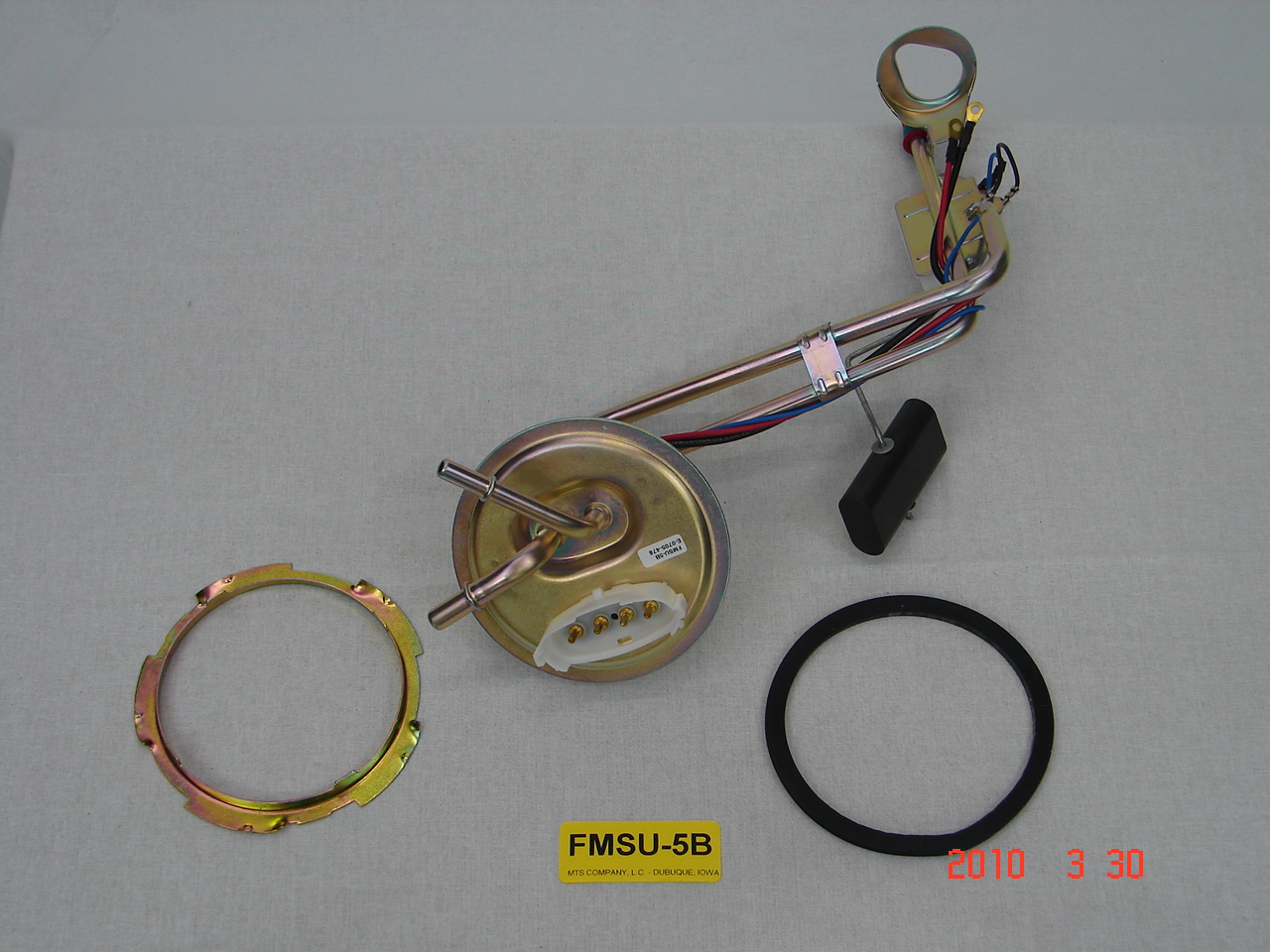

FMSU-5B 1987-1989 Ford® Full-Size Pickup 19 gallon gas(front, side, midship) tank sending unit with fuel injection without pump. Includes new lock ring and O-ring. Replaces #'s E7TZ-9H307-B and E7TZ9H307BA.
Ohm range: Full 155-165, Empty 5-15.
Tank #4252A
Lock ring #FMLR-2
O-ring #FMOR-2
Fuel pump #EFPK-3206
Fuel pump #EFPK-3266
FMSU-5BP 1987-1989 Ford® Full-Size Pickup 19 gallon gas(front, side, midship)tank sending unit with fuel injection with pump. Includes new lock ring, O-ring and in-tank fuel filter.
Ohm range: Full 155-165, Empty 5-15.
Tank #4252A
Lock ring #FMLR-2
O-ring #FMOR-2
Fuel pump #EFPK-3206
Fuel pump #EFPK-3266
FMSU-5E 1985-1986 Ford® Full-Size Pickup 19 gallon gas(front, side, midship)tank sending unit for 7.4L, 460 cu. in. engine ONLY. In-tank "low pressure" fuel pump not included. Includes new lock ring and O-ring. Replaces # E6UZ-9H307-H.
Ohm range: Full 8.5-10.5, Empty 70-80.
Tank #4252A
Lock ring #FMLR-2
O-ring #FMOR-2
Fuel pump #EFPK-3250
Fuel pump #EFPK-3266
FMSU-5EP 1985-1986 Ford® Full-Size Pickup 19 gallon gas(front, side, midship)tank sending unit for 7.5L, 460 cu. in. engine ONLY. In--tank "low pressure" fuel pump included. Includes new lock ring, O-ring and in-tank fuel filter. Replaces # E6UZ-9H307-H.
Ohm range: Full 8.5-10.5, Empty 70-80.
Tank #4252A
Lock ring #FMLR-2
O-ring #FMOR-2
Fuel pump #EFPK-3250
Fuel pump #EFPK-3266
FMSU-6
**NEW**
1985-1986 Ford® Full-Size Pickup 19 gallon gas(front, side, midship)tank sending unit with fuel injection without pump. Includes new lock ring and O-ring. Replaces # E5TZ-9H30-C.
Ohm range: Full 8.5-10.5, Empty 63-85.
Tank #4252A
Lock ring #FMLR-2
O-ring #FMOR-2
Fuel pump #EFPK-3206
Fuel pump #EFPK-3266
FMSU-6P
**NEW**
1985-1986 Ford® Full-Size Pickup 19 gallon gas(front, side, midship)tank sending unit with fuel injection with pump. Includes new lock ring, O-ring and in-tank fuel filter. Replaces # E5TZ-9H30-C.
Ohm range: Full 8.5-10.5, Empty 63-85.
Tank #4252A
Lock ring #FMLR-2
O-ring #FMOR-2
Fuel pump #EFPK-3206
Fuel pump #EFPK-3266
FMSU-6R
**NEW**
1985-1986 Ford® Full-Size Pickup 19 gallon rear gas tank (not diesel) sending unit with fuel injection without pump. Includes new lock ring and O-ring.
Ohm range: Full 8.5-10.5, Empty 63-85.
Tank #4253
Lock ring # FMLR-2
O-ring # FMOR-2
Fuel pump #EFPK-3206
Fuel pump #EFPK-3266
FMSU-6RP
**NEW**
1985-1986 Ford® Full-Size Pickup 19 gallon rear gas tank (not diesel) sending unit with fuel injection with pump. Includes new lock ring, O-ring and in-tank fuel filter.
Ohm range: Full 8.5-10.5, Empty 63-85.
Tank #4253
Lock ring #FMLR-2
O-ring #FMOR-2
Fuel pump #EFPK-3206
Fuel pump #EFPK-3266



Ford® Bronco, Full-Size Bronco & Bronco II Sending Units

Part # Description Related parts
FMSU-1 1966-1976 Ford® Bronco gas tank sending unit for 11 gallon front auxiliary and 13 gallon rear tank. Includes new lock ring, O-ring and in-tank fuel filter. Replaces #'s C6TZ9275D and D7T29275F.
Ohm range: Full 8.5-10.5, Empty 70-80.
Tank #4239
Tank #4240
Tank #4241
Tank #4242
Lock ring #FMLR-1
O-ring #FMOR-1
FMSU-33E

1978-1984 Ford® Full-Size Bronco 33-gallon gas tank sending unit with 2" hole. Includes new lock ring, O-ring and in-tank fuel filter. Replaces # D8TZ9275C.

Fuel Pickup Tube Diameter
Outside Diameter: 5/16"
Inside Diameter: 1/4"

Ohm range: Full 8.5-10.5, Empty 70-80.

Tank #4251A
Tank #4251C
Tank #4251S
Lock ring #FMLR-1
O-ring #FMOR-1
FMSU-4500A 1984 Ford® Bronco II 23 gallon gas tank sending unit without fuel injection. Includes new lock ring and O-ring. Replaces # E4TZ9275B.
Ohm range: Full 8.5-10.5, Empty 70-80.
Tank #4500
Lock ring #FMLR-1
O-ring #FMOR-1
FMSU-4600C 1985 Ford® Bronco II 23 gallon rear gas tank (not diesel) sending unit without fuel injection. Includes new lock ring, O-ring and in-tank fuel filter. Replaces # E9TZ9H307D.
Ohm range: Full 8.5-10.5, Empty 70-80.
Tank #4600
Lock ring # FMLR-2
O-ring # FMOR-2

Chevy/GMC® Full-Size Pickup, Blazer, Big Blazer, S-10 Pickup/Blazer S-15 Pickup/Jimmy and Suburban Sending Units

Part # Description Related parts
GMSU-1 1971-1972 Chevy® Full-Size Blazer/Suburban 21 gallon fuel tank sending unit. Includes new lock ring, O-ring and in-tank fuel filter.
Ohm range: Full 90-94, Empty 0-1.5.
Tank #2042
Lock ring #JWLR-1
O-ring #GMOR-2
GMSU-2534 1988-1995 Chevy/GMC® Full-Size Pickup 25 and 34 gallon gas tank (not diesel) sending unit with fuel injection without pump. Includes new lock ring and O-ring.
Ohm range: Full 90-94, Empty 0-1.5.
Tank #2025
Tank #2034
Lock ring #GMLR-1
O-ring #GMOR-1
Fuel pump #EFPK-3209
GMSU-2534P 1988-1995 Chevy/GMC® Full-Size Pickup 25 and 34 gallon gas tank (not diesel) sending unit with fuel injection with pump. Includes new lock ring, O-ring and in-tank fuel filter.
Ohm range: Full 90-94, Empty 0-1.5.
Tank #2025
Tank #2034
Lock ring #GMLR-1
O-ring #GMOR-1
Fuel pump #EFPK-3209
GMSU-2534A 1996-1997 Chevy/GMC® Full-Size Pickup 34 gallon gas tank (not diesel) sending unit with fuel injection without pump for 5.7L or 7.4L engine, Excecutive cab and chasis. Includes new lock ring and O-ring.
Ohm range: Full 90-94, Empty 0-1.5.
Tank #2034
Lock ring #GMLR-1
O-ring #GMOR-1
Fuel pump #EFPK-3270
GMSU-2534AP 1996-1997 Chevy/GMC® Full-Size Pickup 34 gallon gas tank (not diesel) sending unitwith fuel injectin with pump for 5.7L or 7.4L engine, Excecutive cab and chasis. Includes new lock ring, O-ring and in-tank fuel filter.
Ohm range: Full 90-94, Empty 0-1.5.
Tank #2034
Lock ring #GMLR-1
O-ring #GMOR-1
Fuel pump #EFPK-3270
GMSU-25B4 1982-1986 Chevy/GMC® Full-Size Blazer/Suburban 25 gallon gas tank (not diesel) 4-pipe sending unit without fuel injection. Includes new lock ring, O-ring and in-tank fuel filter.
Ohm range: Full 90-94, Empty 0-1.5.
Tank #2225A
Lock ring #GMLR-1
O-ring #GMOR-1
GMSU-2L 1973-1986 Chevy/GMC® Full-Size Pickup 16 and 20 gallon fuel tank (not diesel) sending unit, left hand (driver side). Includes new lock ring, O-ring and in-tank fuel filter.
Ohm range: Full 90-94, Empty 0-1.5.
Tank #2050
Tank #2050A
Tank #2050B
Tank #2050C
Lock ring #GMLR-1
O-ring #GMOR-1
GMSU-2R 1973-1986 Chevy/GMC® Full-Size Pickup 16 and 20 gallon fuel tank (not diesel)sending unit, right hand (passenger side). Includes new lock ring, O-ring and in-tank fuel filter.
Ohm range: Full 90-94, Empty 0-1.5.
Tank #2050
Tank #2050A
Tank #2050B
Tank #2050C
Lock ring #GMLR-1
O-ring #GMOR-1
GMSU-31C4 1973-1977 Chevy/GMC® Full-Size Blazer/Suburban 31 gallon fuel tank (not diesel) 4-pipe sending unit without fuel injection. Includes new lock ring, O-ring and in-tank fuel filter.
Ohm range: Full 90-94, Empty 0-1.5.
Tank #2231
Lock ring #GMLR-1
O-ring #GMOR-1
GMSU-SUB42 1992-1997 GMC® Suburban 42 gallon fuel tank (not diesel) sending unit with fuel injection (w/o pump). Includes new lock ring and O-ring.
Ohm range: Full 90-94, Empty 0-1.5.
Lock ring #GMLR-1
O-ring #GMOR-1
Fuel pump #EFPK-3209
GMSU-SUB42P 1992-1995 GMC® Suburban 42 gallon fuel tank (not diesel) sending unit with fuel injection (w/ pump). Includes new lock ring, O-ring and in-tank fuel filter.
Ohm range: Full 90-94, Empty 0-1.5.
Lock ring #GMLR-1
O-ring #GMOR-1
Fuel pump #EFPK-3209
GMSU-BN 1992-1994 Chevy® Blazer 5.7L fuel injected engine w/ 30 gallon tank. Does not include fuel pump: EFPK-3209

1992-1994 GMC® Yukon 5.7L fuel injected engine w/ 30 gallon tank. Does not include fuel pump: EFPK-3209

1995 Chevy Tahoe® 5.7L fuel injected engine w/ 30 gallon tank. Does not include fuel pump: EFPK-3931(Special Order)

1995 Chevy Blazer® 5.7L fuel injected engine w/ 30 gallon tank. Does not include fuel pump: EFPK-3270

1996-1997 Chevy Tahoe® 5.7L fuel injected engine w/ 30 gallon tank. Does not include fuel pump: EFPK-3270

1996-1997 GMC Yukon® 5.7L fuel injected engine w/ 30 gallon tank. Does not include fuel pump: EFPK-3270

Includes new lock ring and O-ring.

**Specific year, make and model required when ordering the sending unit with the fuel pump**

Ohm range: Full 90-94, Empty 0-1.5.
Lock ring #GMLR-1
O-ring #GMOR-1
Fuel pump #EFPK-3209
Fuel pump #EFPK-3931
Fuel pump #EFPK-3270
GMSU-BNP 1992-1994 Chevy® Blazer 5.7L fuel injected engine w/ 30 gallon tank. Includes fuel pump: EFPK-3209

1992-1994 GMC® Yukon 5.7L fuel injected engine w/ 30 gallon tank. Includes fuel pump: EFPK-3209

1995 Chevy Tahoe® 5.7L fuel injected engine w/ 30 gallon tank. Includes fuel pump: EFPK-3931(Special Order)

1995 Chevy Blazer® 5.7L fuel injected engine w/ 30 gallon tank. Includes fuel pump: EFPK-3270

1996-1997 Chevy Tahoe® 5.7L fuel injected engine w/ 30 gallon tank. Includes fuel pump: EFPK-3270

1996-1997 GMC Yukon® 5.7L fuel injected engine w/ 30 gallon tank. Includes fuel pump: EFPK-3270

Includes new lock ring and O-ring.

**Specific year, make and model required when ordering the sending unit with the fuel pump**

Ohm range: Full 90-94, Empty 0-1.5.
Lock ring #GMLR-1
O-ring #GMOR-1
Fuel pump #EFPK-3209
Fuel pump #EFPK-3931
Fuel pump #EFPK-3270
GMSU-S10BD 1992-1994 Chevy® S-10 Blazer 20 gallon gas tank sending unit with fuel injection (w/o pump) for 4.3L engines with a "Z" in the VIN# (8TH DIGIT). Includes new lock ring and O-ring.
Ohm range: Full 90-95, Empty 0-1.5.
Tank #2200
Lock ring #GMLR-1
O-ring #GMOR-1
Fuel pump #EFPK-3209
GMSU-S10BDP 1992-1994 Chevy® S-10 Blazer 20 gallon gas tank sending unitwith fuel injection with pump for 4.3L engines with a "Z" in the VIN# (8TH DIGIT). Includes new lock ring, O-ring and in-tank fuel filter.
Ohm range: Full 90-94, Empty 0-1.5.
Tank #2200
Lock ring #GMLR-1
O-ring #GMOR-1
Fuel pump #EFPK-3209



Chevy/GMC® Full-Size Blazer/Suburban Diesel Sending Unit

Part # Description Related parts
GMSU-31J3
**NEW**

1984-1991 Chevy/GMC Full-Size Blazer/Suburban 31 & 40 gallon DIESEL Only (not gas) fuel tank sending unit w/ 3 pipes. Includes a new ring, O-ring and in-tank fuel filter. Replaces #
Ohm range: Full 90-94, Empty 0-1.5.
Tank #2231A

Contact us

Hours

Monday - Friday 8am to 4:30pm CST

Phone

USA: (800) 522-1622
Local / International: (563) 557-9577

Fax

(563) 557-0695

E-mail


Copyright © 2024 MTS COMPANY L.C.. All rights reserved.
